Stainless Steel Banding & Boxed Banding for UK
Click to view full corporate video


Sizes and Guides

The following sizes in AISI 304/1.4301 and AISI 316/1.4401 with bright smooth finish BA or matt smooth finish 2B finish are available from stock. Other widths and thicknesses up to 50mm (2") are available upon request. Aluminium and Alu/Zinc banding are also available subject to size of order and availability.

A full export service is available for worldwide supply.

Certificates of conformity, showing the exact chemical composition of the material are supplied with each delivery.

Coils are supplied banded on pallets and shrink wrapped. Maximum pallet weight 1500kg.

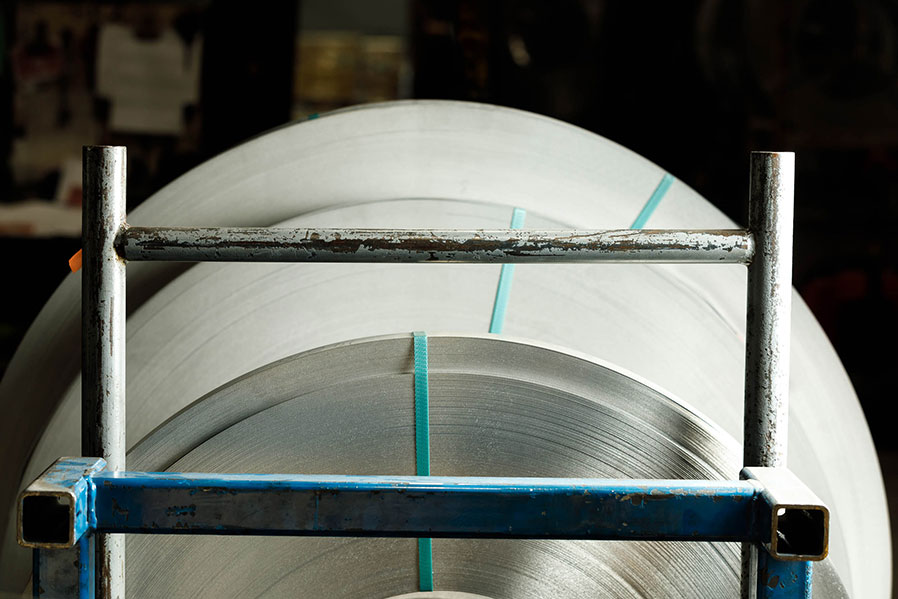

Image For Boxed Banding
Banding
Thickness and Width of Stainless Steel Banding
Thickness Width
0.4 12.7mm (1/2") & 19mm (3/4")
0.5 12.7mm (1/2") & 19mm (3/4")
Metres per kg on Stainless Steel Strip
Width (mm) Thickness(mm) Metres/kg kg/30 metres

12.70 0.50 19.5 1.54
16.00 0.50 15.50 1.94
19.00 0.50 12.98 2.31
25.00 0.50 12.98 2.31
25.00 0.60 8.26 3.63
40.00 0.80 3.87 7.74
50.00 0.80 3.10 9.67


Boxed Banding

Metric
Width (mm) Thickness(mm) Metres Kg/Box
12.80 0.50 30.50 19.5
15.88 0.50 30.50 15.50
19.00 0.50 30.50 12.98
12.70 0.50 30.50 12.98
15.88 0.50 30.50 8.26
19.00 0.50 30.50 3.87

Boxed banding used for general fastening in a variety of industries.

Standard boxed banding sizes available in grades 304 & 316.

Banding can be supplied with sheared, handsafe or round edge.

Bespoke sizes, thicknesses & grades available upon request and subject to size of order.

Banding cut lengths with clips also available.

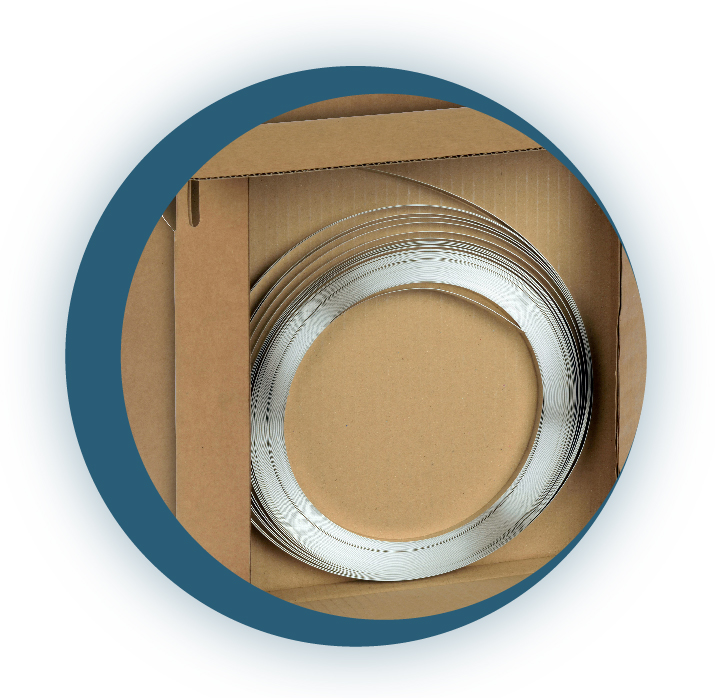

Second Image for Boxed banding

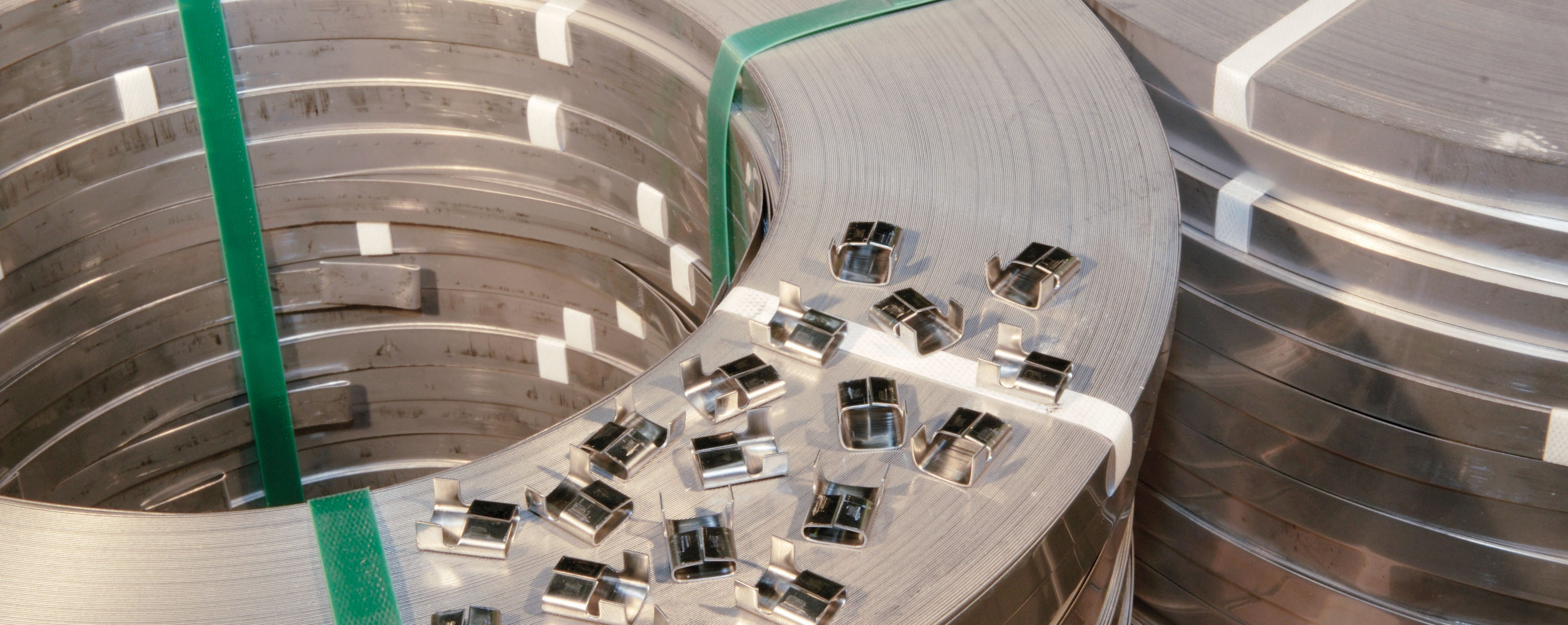

Clips, Seals and Accessories

Winged clips and lapover clips are available from stock in AISI 304/1.4301 and AISI 316/1.4401 in the sizes below, Also available subject to size of order and availability: Aluminium clips, Alu/Zinc clips, toggle clips and expansion joints.

Also available in subject to size of order and availability:

  • Aluminium clips
  • Alu/Zinc clips
  • Toggle clips
  • Expansion joints
Thickness and Width of Clips, Seals and Accessories
ThicknessWidth
0.812.7mm(1/2")
0.816mm(5/8")
0.819mm(3/4")
0.825mm(1")
0.840mm(1 5/8")
0.850mm(2")
